What Is Safe Isolation and Why Does It Matter?

Safe isolation is the verified process of disconnecting electrical circuits from their supply and confirming they're dead before any work begins. Sounds basic, right? But every year in the UK, around 1,000 electrical accidents at work get reported to the Health & Safety Executive (HSE), and a significant number of those involve someone who assumed a circuit was dead when it wasn't.

When I first started looking into electrical safety for a uni project on workplace regulations, I thought safe isolation was just "flip the switch off." It's so much more than that. The procedure exists because voltage can be present from backfeed, stored energy in capacitors, or someone simply flipping the wrong breaker back on while you're elbow-deep in a consumer unit.

A proper voltage tester and proving unit setup is your lifeline here. Literally.

The Human Cost of Skipping Steps

Between 2019 and 2024, the HSE recorded multiple fatalities linked directly to inadequate isolation procedures. These weren't cowboys — some were experienced electricians who got complacent. One moment of "it'll be fine" can be fatal at 230V AC. The human body's resistance drops dramatically with sweat, cuts, or damp conditions, meaning even domestic voltage kills.

GS38 Guidance: What the HSE Actually Requires

GS38 is the HSE's guidance document on electrical test equipment used by electricians. It's not technically law — but if you don't follow it and something goes wrong, you'll have a very difficult time defending yourself in court or to an insurance company.

The document specifies that test equipment must:

• Have clearly marked voltage ratings (CAT III or CAT IV for distribution work)
• Use fused test leads with a maximum of 20mm exposed metal tip
• Feature finger guards to prevent accidental contact
• Be proved immediately before AND after testing a circuit
• Comply with BS EN 61243-3 for two-pole voltage detectors

That last point is crucial. You can't just test a circuit and walk away. You prove your tester works, test the circuit, then prove it again. Three steps. No shortcuts., a favourite among Britain’s tradespeople

Who Needs to Follow GS38?

Everyone. Qualified electricians, apprentices, maintenance staff, facilities managers — anyone who might need to confirm a circuit is dead. If you're working under BS 7671 (the IET Wiring Regulations, 18th Edition as of 2026), safe isolation is baked into the requirements for virtually every job.

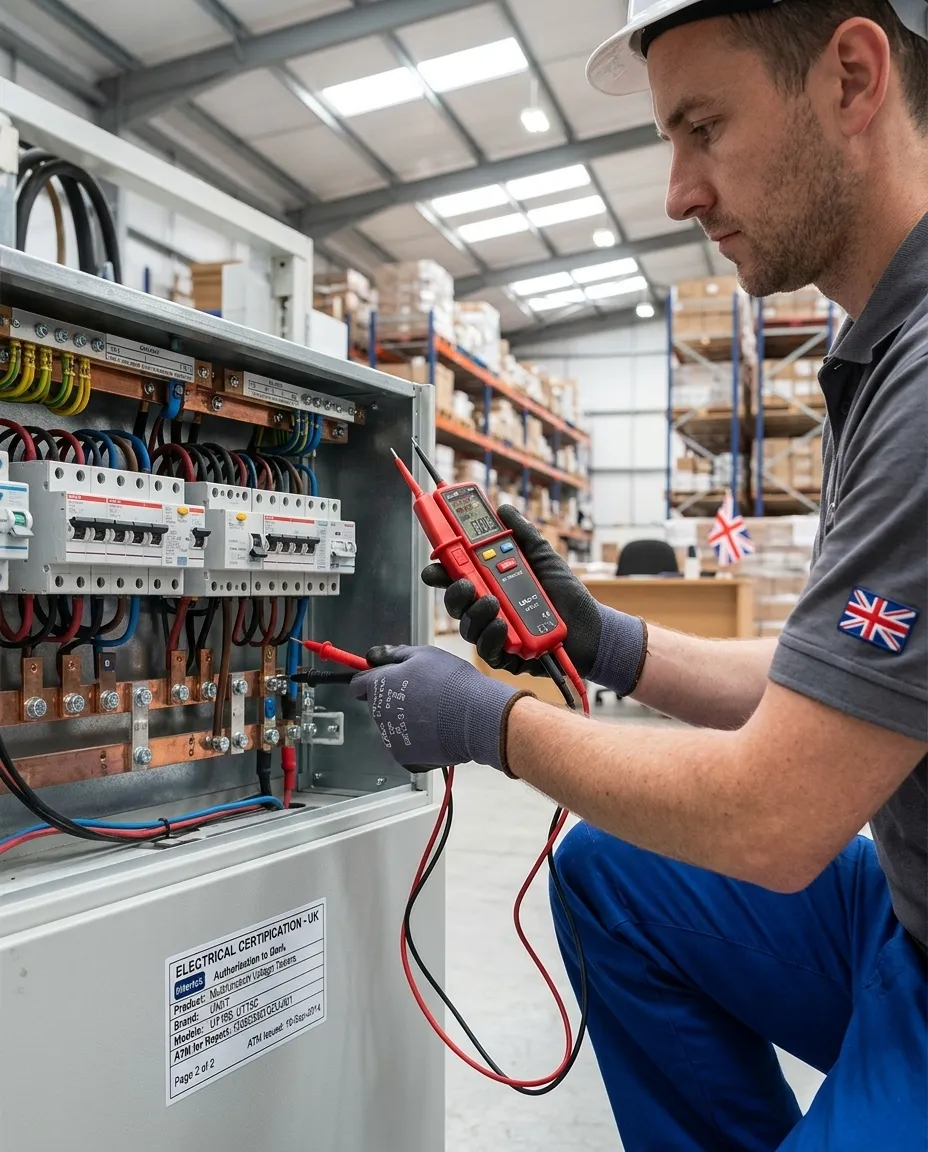

How a Voltage Tester and Proving Unit Work Together

A two-pole voltage tester confirms the presence or absence of voltage between conductors. A proving unit provides a known voltage source to verify your tester is actually working correctly. Together, they form the backbone of every safe isolation procedure carried out in the UK.

Think of it this way — your voltage tester might show "no voltage" on a circuit. But how do you know the tester itself hasn't failed? Flat batteries, damaged leads, a blown internal fuse, corrosion on the probes. Any of these could give you a false "dead" reading. That's where the proving unit comes in.

The Prove-Test-Prove Sequence

This is non-negotiable:

1. Prove: Connect your two-pole tester to the proving unit. Confirm it reads the known voltage (typically 50V, 100V, 230V, or up to 690V depending on the unit).
2. Test: Use the verified tester on the isolated circuit. Confirm dead on all conductors — line-neutral, line-earth, neutral-earth.
3. Prove again: Reconnect to the proving unit. Confirm the tester still reads correctly.

If it fails the second prove? You can't trust your "dead" reading. Start again with a different tester.

Choosing the Right Two-Pole Voltage Tester

Not all testers are created equal. The market's flooded with options ranging from £30 budget units to £150+ professional-grade instruments, and the difference matters when your safety depends on it.

For professional use under GS38, you need a two-pole tester (not a non-contact voltage tester alone — those are useful for initial checks but don't replace a proper two-pole instrument for safe isolation)., meeting British quality expectations

Key Features to Look For

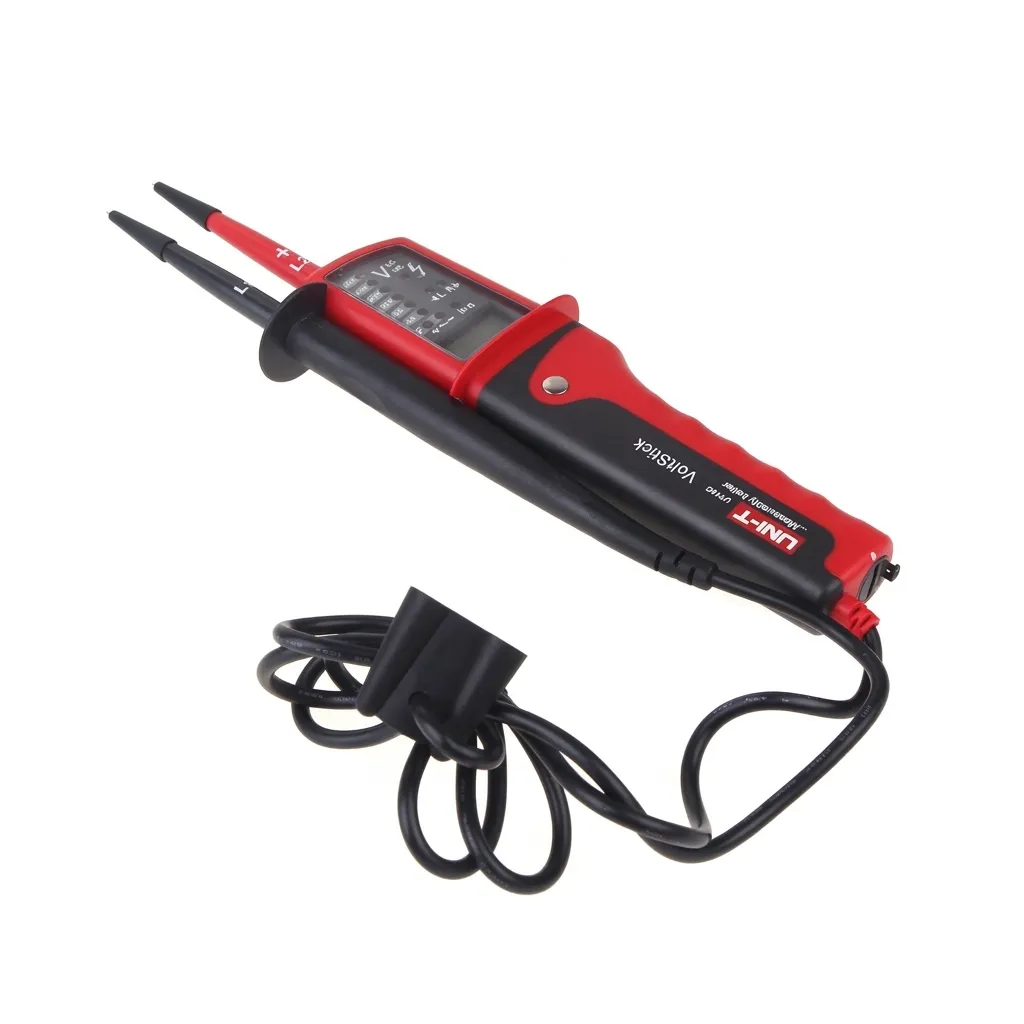

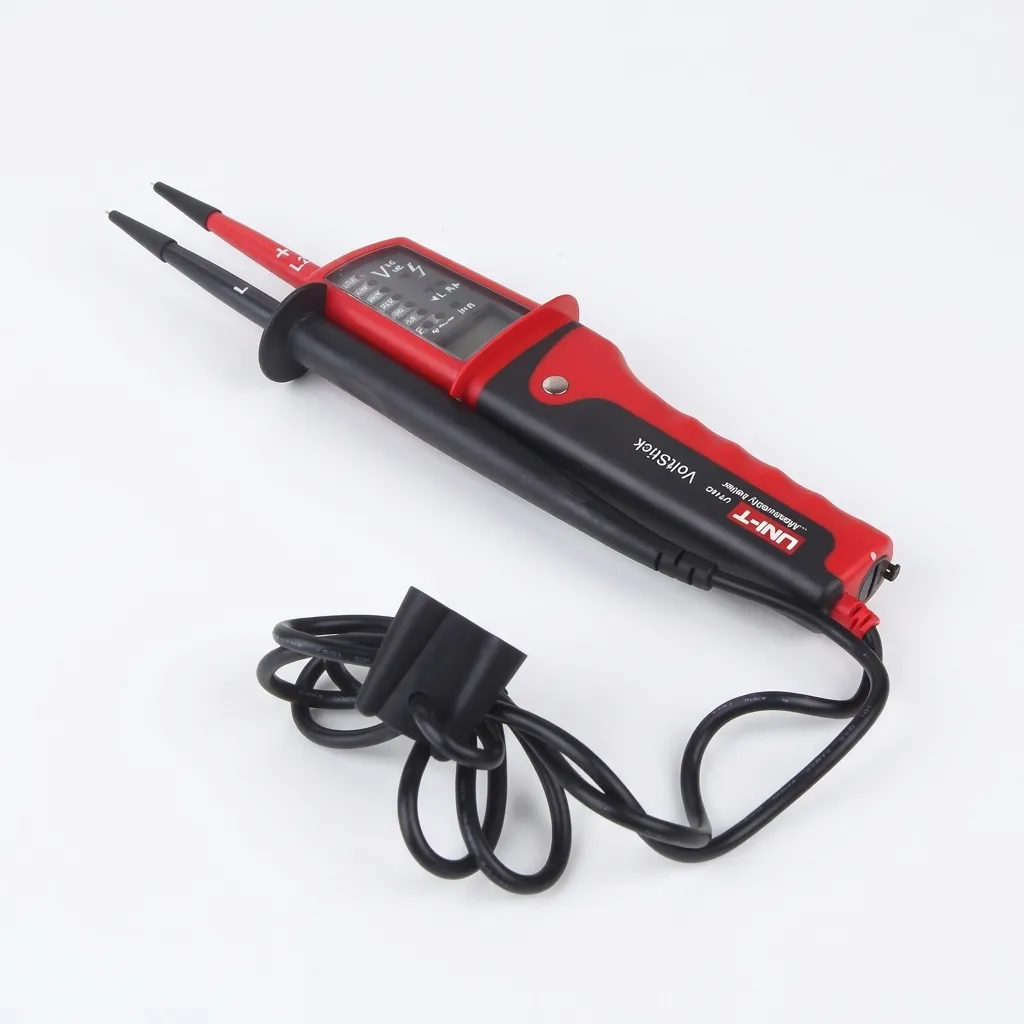

The UNI-T UT18C is a solid example — IP65-rated, covers 12V to 690V, includes 3-phase rotation indication, continuity buzzer, and single-lead live detection. It ticks every GS38 box without the premium price tag of some competitors. For the money, it's hard to beat.

Why a Proving Unit Isn't Optional

A proving unit is a battery-powered device that generates a known, safe voltage output — typically switchable between 50V, 100V, 230V, 400V, and 690V. Its sole purpose is confirming your tester responds correctly to voltage.

Can you prove your tester on a known live socket instead? Some people do, but there are real problems with that approach:

• The "known live" source might itself be faulty
• You're introducing additional risk by accessing live parts unnecessarily
• It doesn't test your instrument across its full range
• It won't satisfy most site safety audits in 2026

A dedicated proving unit eliminates all of these issues. It's portable, battery-operated, and gives you a traceable, repeatable verification every single time.

What About Fluke and Other Premium Brands?

A fluke voltage tester paired with a Fluke PRV240 proving unit is the gold standard many sparks swear by — a qualified electrician I know in Salford won't use anything else. But you're looking at £200+ for the tester alone, plus another £100-odd for the proving unit. For professionals doing daily isolation work, that investment makes sense. For maintenance teams or those on tighter budgets, alternatives like the UNI-T range from atutenuk.co.uk offer GS38 compliance at a fraction of the cost.

Whether the extra spend on premium is worth it depends on your use case. For daily commercial and industrial work — probably yes. For periodic maintenance and domestic work — a quality mid-range kit does the job brilliantly.

Step-by-Step Safe Isolation Procedure

Here's the full procedure as it should be carried out on every job. No exceptions., popular across England

Before You Start

1. Identify the circuit to be worked on using drawings, schedules, or labelling
2. Identify the point of isolation (MCB, fuse, isolator switch, or main switch)
3. Notify all relevant persons that isolation is taking place

The Isolation

1. Switch off — operate the circuit breaker or remove the fuse
2. Secure — lock off with a unique lock and apply warning labels. MCB lockout devices cost under £5 and are essential
3. Prove your tester — connect to proving unit, confirm correct reading at the appropriate voltage (e.g., 230V for single-phase domestic)
4. Test the circuit — check between all conductors: L-N, L-E, N-E. All should read 0V (dead)
5. Prove your tester again — reconnect to proving unit, confirm it still reads correctly

Only Then Is It Safe to Work

If any step fails — stop. Investigate. Don't assume. A tester that reads 0V on a live circuit because its battery is flat will get you killed just as effectively as touching a bare conductor.

One thing worth clarifying: some modern testers like the UT18C use LED indication that doesn't rely on battery power for basic voltage detection. The continuity and phase rotation functions still need battery, though — so you prove it every time regardless.

Two-Pole Voltage Tester Comparison: January 2026

Here's how the main options stack up for UK professionals needing a reliable voltage and continuity tester:

The UT18C stands out for including phase rotation and single-lead live detection at a price point well below the Martindale and Fluke options. For anyone building a toolkit on a budget — whether you're a final-year apprentice or a facilities manager equipping a team — that's proper bang for your buck.

If you're also looking at RCD testing tools, pairing them with a decent two-pole tester and proving unit gives you a complete safe isolation and verification kit for under £150 total.

Key Takeaways

• A voltage tester and proving unit are inseparable — using one without the other violates GS38 guidance and puts lives at risk.
• The prove-test-prove sequence is mandatory — prove your tester works, test the circuit, prove it again. Three steps, every single time.
• Two-pole testers replace, not supplement, non-contact detectors for safe isolation — voltsticks alone aren't sufficient for confirming dead.
• IP65 rating and CAT III/IV certification are non-negotiable for any tester used on UK construction or industrial sites in 2026.
• Budget options now meet professional standards — the UNI-T UT18C delivers GS38 compliance, phase rotation, and IP65 protection from around £55.
• Lock-off devices and warning labels are part of the procedure, not optional extras — isolation without securing is incomplete isolation.
• Annual calibration and daily visual inspection of leads and probes keeps your equipment trustworthy and audit-ready.
